Jewellery Casting Machine

Jewellery Casting Machines

We delivers reliable, high-quality products designed to boost efficiency, enhance precision, and support your business growth.

Our Products | Our Products

VULCANIZER

Use for making Rubber Dies
Digital PID Controller
Digital Timer
K-type Sensor
Power on & Heat on Indicator
Easy to install & maintain

WAXJET 510 (3D Printer) - Product Specifications

Specification	Details
Electric Supply	230V AC, Single Phase
Power Consumption	1 KW
Maximum Opening	4.5"
Maximum Temperature	200 c
Maximum Timer	99 Minutes

AUTO CLAMP WAX INJECTOR

Higher Wax Productivity & Repeatable Result
Digital PID Temperature Controller for Tank
Wax Chamber Aluminum Tank
Inbuilt Filer ensures reuse or Wax
Analogue Regulator for precise air pressure control
Provision for Wax Removal
A Single Switch Control Full Program
Vacuum Time, Injection time & Cool Time can be set on the programmer. Vacuum draws air out of the mold before wax is injected, eliminating the tapped air bubbles & voids.

WAXJET 510 (3D Printer) - Product Specifications

Specification	Details
Electric Supply	230V AC, Single Phase
Power Consumption	900 KW
Wax Capacity	25KG
Air required	0-60 psi
Max Mould Size	100mm x 100mm x 38mm

BURNOUT FURNACE

High Density Insulation material to prevent heat loss
Digital PID profile temperature controller having 8 step memory or 16 steps single memory.
Comfortable working height ensures ease of operation
Power On & Heat On Indicator
Power Coated MS Fabrication
Attached Control Panel

Product Specifications

TECHNICAL SPECIFICATION

Model	KTE6	KTE12	KTE16
Flask Capacity	6	12	18
Power Supply	1Φ, 230V AC, 6 KW	3Φ, 440V AC, 9 KW	3Φ, 440V AC, 12 KW
Over Dimension (mm)	749x559x1422	965x712x1397	965x712x1651
Net Weight	180 Kg.	325 Kg.	300 Kg

WITH INTERNAL AIR CIRCULATION FAN

Model	AF6	AF12	AF18
Over Dimension (mm)	508x762x1397	914x1397x1524	1016x1524x1651
Net Weight	275 Kg.	400 Kg.	497kg

WATER JET MACHINE

Engonomically lit. up
Rust-proof Divesting Cabinet with high-pressure water pump for quick & total cleaning, setting tank with a S. S. Trap

WAXJET 510 (3D Printer) - Product Specifications

Specification	Details
Electric Supply	3 Phase 440V AC, 0.75 KW
Water Inlet	250 CFM (Max)
Water Pressure	40-110 bar (Max)

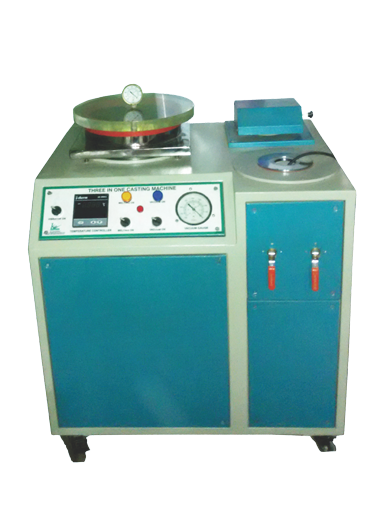

3-IN-1 CASTING MACHINE

Ideal for investment. Melting & Casting-3 application in a device.
Digital PID Temper ature Controller.
Isolated Low Voltage Heating System.
High Vacuum Suction.
Powder Coated MS F abrication.
Fully SS Fabrication.
Easy to install & maintain.
User friendly.

Product Specifications

TECHNICAL SPECIFICATION

Electric Supply	230V AC, Single Phase
Power Consumption	2.2 KW
Maximum Temp	115°C
Vacuum Pump	350 Lit/min
Flask Size(casting)	4"Dia*8"Hight
Melting capacity	1KG

PRESSURE CASTING

Create flawless jewelry with AS Technology’s Pressure Casting machines. These professional systems melt alloys up to 1300°C and use an integrated vacuum pump to ensure dense, porosity-free castings. Available in various crucible capacities, including 3 kg and 5 kg for gold, they are versatile and powerful tools for any jewelry manufacturer.

Product Specifications

Product Specification

Specification	PressCast 3J	OUPT-017-660
Power (max)	11.0 kW	11.0 kW
Frequency	6 kHz	6 kHz
AC Line	(50/60Hz), 3 Phase	400 V ±10%
Melting Temperature (max)	1300 °C	1300 °C
Crucible Capacity	3 kg Au	5 kg Au
Crucible Volume	208 cm3	430 cm3
Flask Size mm (min), DxH	87 x 127	80 x 127
Flask Size mm (max), DxH	120 x 300	120 x 300
Vacuum Pump	Included	Included
Cooling Requirements water system quoted upon request	Water (External)	Water (External)
Cooling Water (min)	5.8 Lpm (1.53 Gpm)	5.8 Lpm (1.53 Gpm)
Inlet Water Temperature (max)	35 °C	35 °C
Weight Lb (kg)	639.3 (290)	937 (425)
Dimensions, Inch (mm) LxWxH	27.6" x 39.8" x 53.1" (700 x 1010 x 1350)	27.6" x 39.8" x 53.1" (700 x 1010 x 1350)

MAGNETIC POLISHER

Fully automatic, having forward & reverse motion, which is managed by a Programmable Controller.
Used for Prime Polish
Fantastic Speed range of 2800 RPM
Gives a Bright Finish to Jewellery
Polish hard-to-reach areas where hand & Tools can’t reach

Product Specifications

TECHNICAL SPECIFICATION

Model	KTE-MPD 500	KTE-MPD 1000	KTE-MPD 1000
Capacity	250 gm	400-600gm	400-600gm
Bowel Size	8"*6" PP & Acrylic	10"*8" PP & Acrylic	10"*8" PP & Acrylic
Motor	AC motor 0.5 hp	AC Motor 1.0 hp	AC Motor 1.3 hp
Speed	Constant 2800Rpm	Constant 2800Rpm	Variable 2800Rpm
Input Voltage	230V Ac 1 PH.	230V Ac 1 PH.	230V Ac 1 PH.
Timer	Digital forw/rew	Digital forw/rew	Digital forw/rew
Safety	Automatic	Automatic	Automatic
Dimension	12.75"12.75"14.5"	13.5"13.5"16.5"	13.5"13.5"16.5"

AUTO STEAMER

Available in Auto Fil.
Rust Free Stains Less Steel Body Maxt Dry Steam
Automatic Pressure & Temperature Cut-Off Switch
Safety Valve For Over Pressue Release

Product Specifications

Specification	Details
MODEL	KTE-STM 6000M
Power Supply	1 Phase, 230V AC 2 KW
Capacity	15 Ltr

STEAMER

Available in auto & manual Water fills
Rust-free free fully stainless steel body
Max dry steam temp of 180 c.
Automatic pressure & temperature cut-off switch
Safety valve for over-pressurization.
Maintainance free machine

WAXJET 510 (3D Printer) - Product Specifications

MODEL	KTE-STM 6000M	KTE-STM 9000M	KTE-STM 15000M	KTE-STM 20000M
Capacity	6 liter	9 liter	15 liter	20 liter
Power Consumption	3000 Watt	3000 Watt	4000 Watt	5000 Watt
Water Filling	Manual	Manual	Manual	Manual
Tank Material	Mild steel	Mild steel	Mild steel	Mild steel
Tank Thickness	10 mm	10 mm	10 mm	10 mm
Input Volgage	230V AC 1 Ph	230V AC 1 Ph	230V AC 1 Ph	230V AC 1 Ph
Water level	Auto Sensor	Auto Sensor	Auto Sensor	Auto Sensor
Safety	Pressure Switch	Pressure Switch	Pressure Switch	Pressure Switch
Steam Pressure	100 psi	100 psi	100 psi	100 psi

ULTRASONIC CLEANER

Power generating frequency at 35+ • 5 kHz
Hearting temperature 65c

WAXJET 510 (3D Printer) - Product Specifications

MODEL	KTE-Uc 6	KTE-UC 9	KTE-UC 20	KTE-UC 25	KTE-UC 30
Capacity	6 liter	9 liter	20 liter	25 liter	30 liter
Input Flower	150 watt	250 watt	500 watt	750 watt	1000 watt
Unknown Frequency	33+ - 5%	33+ - 5%	33+ - 5%	33+ - 5%	33+ - 5%
Input Voltage	230V AC 1 Ph	230V AC 1 Ph	230V AC 1 Ph	230V AC 1 Ph	230V AC 1 Ph
Tank Material	304/16 swg	304/16 swg	304/16 swg	304/16 swg	304/16 swg
Other Body	202/20 swg	202/20 swg	202/20 swg	202/20 swg	202/20 swg
Heater Capacity	500 watt	500 watt	500 watt	500 watt	500 watt

JEWELLERY POLISHING

Strong suction motor.
Exclusive Wooden Formica top with two no’s of drawers.
Pocket cloth filters 10 microns.
More filter capacity.
Silencer for noise reduction.
Locking facility.

WAXJET 510 (3D Printer) - Product Specifications

MODEL	KTE PL SI	KTEPL D 2
Power Supply	1/3ph, 230/440V AC 0.75	1/3ph, 230/440V AC 0.75
Suction Power	250 CFM/station	250 CFM/station
Operating person	Single	Double
Sound level	68db (Approx)	68db (Approx)

INVESTMENT MIXER

Embedding the Wax Tree Under Vacuum to Obtain.
Uniform Slurry & Nodule Free Casting.
5 Nozzle Mahin for a 5 Flask Powder Filling
Imported Ball Valve
Speed Variable Motor
2 Filter Pump & Tank Attach
Vibraer System
40 Bush Pump

WAXJET 510 (3D Printer) - Product Specifications

Specification	Details
Power Supply	3 Phase, 440V, 2.2 KW
Ball Valve	Imported
Motor	Speed Variable motor
Filter Pump & Tank	2 Filter pump & tank attach
System	Vibrating system
Pump	40 Bush pump

GOLD REFINERY MACHINE

Refine all your gold in your own premises under your supervision in a pollution-free environment.
High profits – As the purity is 999 and better, compared to other methods,
where you incur a loss.
Minimum handling of equipment. Short Process time, low economical process cost.

WAXJET 510 (3D Printer) - Product Specifications

MODEL	KTE STTAP 1	KTE GR 2/3
Power Supply	50, HZ, 230V	230V AC 1 PH
Capacity Gold	3 KG Per Day 1 KG Per Batch	6/9 KG Per Day 2/3 KG Per Batch

GOLD INDUCTION MELTER

K-Tech presents Medium frequency induction Melting Machine for
jewellery application.
Latest IGBT technology for High efficiency and High performance.
Medium Frequency induction melting gives churning that ensures
Homogeneous mixing of metals and perfect “Touch”.
A temperature of more than 12000 °C is possible for palladium
based white gold alloys

WAXJET 510 (3D Printer) - Product Specifications

Specification	Details
Power Consumption	4 KW-50KW
Frequency	Medium Frequency
Capacity	1/2 Kg to 50 Kg
Time to Melt	8-10 Min
Max Temperature	1200 C (1400 C optional)
Water Circulation	6-8 Lit. per minute

LAPPING MACHINE

Engonomically lit up
Power-coated machine mounted at an angle of 45 degrees. Wth efficient suction.

WAXJET 510 (3D Printer) - Product Specifications

Specification	Details
Power Supply	3 Phase 440V AC, 0.75 KW
Blower Suction	250 CFM (Max)
Dust Filler	5 Micron Bag

FILING TABLE WITH DUST COLLECTOR

Two in an operating system
High & efficient suction of 250 cfm at every inlet

WAXJET 510 (3D Printer) - Product Specifications

Specification	Details
Power Supply	1 Phase 230 V AC, KW, KG.

SETTLING TANK

Fully PVC. body
Wash Basin & Water tap.
Water level controlling & pumping unit.
Available in custom made design

WAXJET 510 (3D Printer) - Product Specifications

MODEL	KTE ST TAP 1	KTE ST TAP 2
Power Supply	lph,230V AC 0.5 kw	lph,230V AC 0.5 kw
Water Tap	One Tap	Two Tap
Filtration	5 micron & 10 micron	5 micron & 10 micron

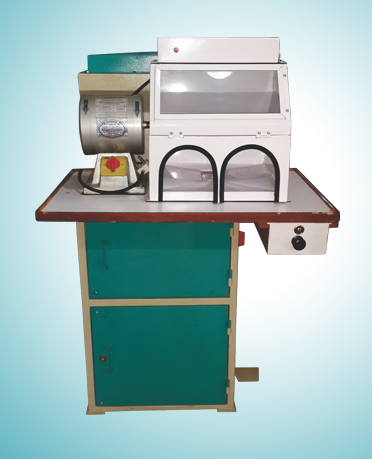

SUPER GRINDING

High-efficiency Dust Collector system by heavy suction of the blower.
5 Micron filter bag for high rate of recovery.
HP pedestal motor of 2800 rpm. With 7 long grinding spindles & wheel.
Use acrylic wood for high thickness with light reflector.

WAXJET 510 (3D Printer) - Product Specifications

Specification	Details
Power Supply	3 Phase, 440V AC 0.75 KW
Blower Suction	250 CFM (Max)

DUST COLLECTOR

High efficient Dust Collector system by Heavy suction of blower
Use Micron filter bag for high rate of recovery

WAXJET 510 (3D Printer) - Product Specifications

Specification	Details
Power Supply	1/3 Phase, 230V440V AC 0.5 KW
Blower Suction	250 CFM (Max)

2 IN 1 CASTING MACHINE SS BODY

Trolley-Mounted Structure.
Investment of Powder, Melting, and Casting is Possible
Double tank storage vacuum gives the best result for filigree work.
Double Stage Vacuum Pump

WAXJET 510 (3D Printer) - Product Specifications

Specification	Details
Power Supply	1/3 Phase, 230V440V AC 0.5 KW
Blower Suction	250 CFM (Max)

MANUAL REFINERY MACHINE

Refine all you can in Your Own Premises Under Your Supervision in a pollution-free environment
Very High Efficient Recovery
High Profits As Purity of 99 And Better Compared to Other Methods
Minimum Handling of Equipment.
Short Process time, Low Economic Process Cost.
Fully P P Structure
1 HP Blower

High efficient Dust Collector system by Heavy suction of blower
Use Micron filter bag for high rate of recovery

WAXJET 510 (3D Printer) - Product Specifications

Accessories

Lit Reagent
Coated Soda
Urea
Filter Pad
Filter Paper
Two Plastic Trays

Spray Bottle
Funnel
Spoon
Hand Gloves
Plastic Wash Bottle
Ceramic Buckner

Rubber Cone
Plastic Pipe
Petrol Pipe
All Assembled Glass Accessories

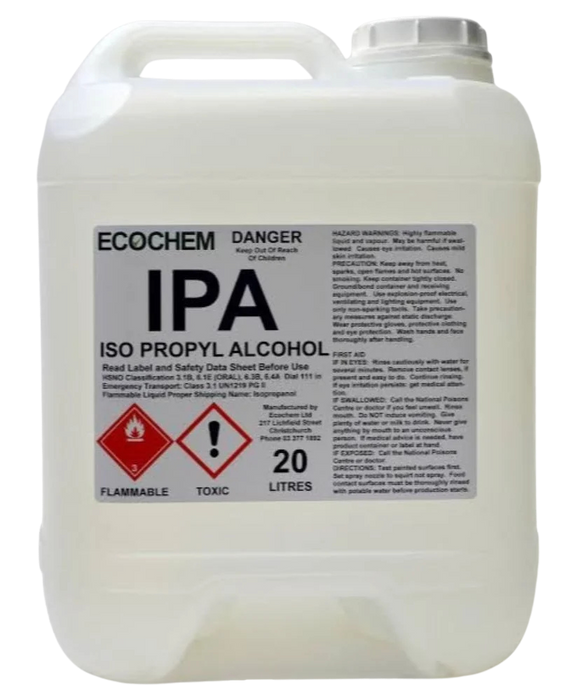

IPA ISOPROPYL ALCOHOL

Isopropyl Alcohol (IPA) from AS Technology is a high-purity, versatile solvent ideal for a wide range of industrial, commercial, and personal applications. Chemically known as Propan-2-ol ( $C_{3} H_{8} O$ ), this clear, colorless liquid is an essential component for various processes.

Product Specifications

Product Specification

Specification	Details
Chemical Formula	C₃H₈O or C₃H₇OH
IUPAC Name	Propan-2-ol
Appearance	Colorless liquid
Odor	Distinctly alcoholic
Properties	Flammable, miscible with water, and a solvent

Common Uses

Use	Details
Antiseptics & Disinfectants	Effectively eliminates germs on skin and surfaces.
Cleaning Agent	Used in electronics to clean components, in the automotive industry to clean grease, and in printing to dissolve inks.
Cosmetics & Personal Care	Included in some personal care products for hygiene and product safety.
Liniments	Acts as a liniment by irritating the skin to increase blood circulation, helping to reduce pain and inflammation.

BOTTOM POURING MACHINE

Trolley-Mounted Structure.
M.S. as Well as S. S Body.
Investment of Powder, Melting, and Casting is Possible.
Single tank Storage Vacuum gives the best result for filigree work.
Vacuum pump 450 Itr (Double Stage).

Product Specifications

Product Specification

Specification	Details
Power Supply	1 Phase, 230V AC 5 KW
Melting Capacity	1 KG

WET SUPER GRINDING

Inbuilt Water System, Water Pump
Grinder 0.5 HP
Variable Speed Motor with Acrylic Hood
Fully S S Body

Product Specifications

Product Specification

Specification	Details
Power Supply	0.75 KW
Air Pressure	0.1 to 0.5 KG

1 KG GOLD MELTER

Transformer Basic Low Voltage Coil
Digital Temperature Controller
K-Type Thermocougle

Product Specifications

Product Specification

Specification	Details
Power Supply	0.75 KW
Air Pressure	0.1 to 0.5 KC

DEBUBBLIZER MACHINE

Trolley Mounted Structure
M.S. Body
These Debubblers Are Used To Remove Air From Inverted Flask
A Debubblizer Removes Air From The Slurry Using A High Powered
Vacuum Pump
This Helps in Obtaining Air Bubble Free Smooth Surfaces Casting

Product Specifications

Product Specification

Specification	Details
Power Supply	1 Phase 230 V

HYDROMAX MICRO BRAZER 4 TORCH

The Hydromax Brazer Produces A High Temperture Flame
Without the Need of Fuel, Gas or Messy Chemicals.
It Works On Electro Chemical Splitting of Water & Productes An
Intense Oxy Hydrogen Flame.
Transformer Basis

Product Specifications

Product Specification

Specification	Details
Power Supply	1 Phase, 230V AC 5 KW
Melting Capacity	1 KG

Let’s Build Something Great Together

Have questions or need support? Get in touch with AS Technology today, we’re here to help.
